WRK Formwork Accessories Steel Iron D15 D16 D 17 Formwork Tie Rod

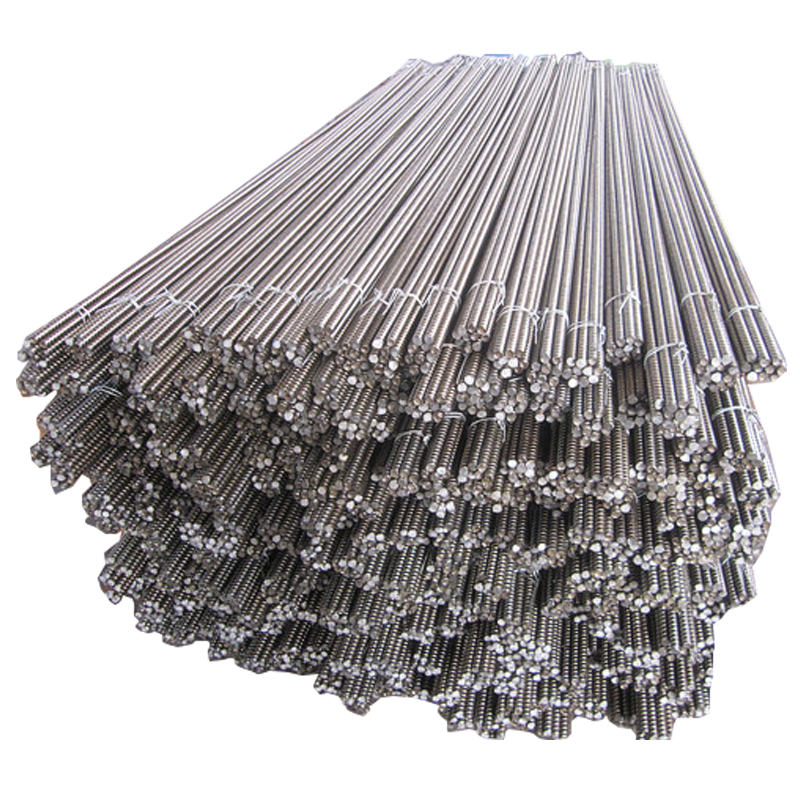

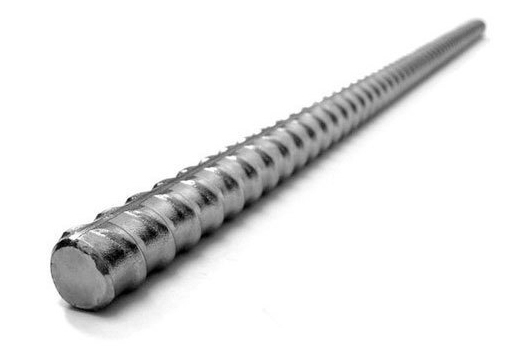

Product Description Formwork Tie Rod
Key adwards: formwork tie rod,tie rod formwork accessories,tie rod,waterstop tie rod,water stop tie rod,tie rod for construction,water tight tie rod,dywidag tie rod,specification steel tie rod,steel tie rod,tie rod 16mm etc.
Formwork Tie Rod play a important rold on constrcution formwork tie rod system, it is used for fastning the formwork panels, made by high strength carbon steel, diameter 15/17mm (also called 16mm), with thread step 10mm/6.35mm, length can be from 1m to 6m according to requirment.Specifications for formwork tie rod
Main Features：
1 High quality carbon steel for ram materil, tension reached 149kn.
2Clearly thread for easy matching with formwork tie rod wing nut.
3 Surface treatment can be selfcolor, also can be zinc yellow color or white color.
4. Grade 45# steel raw materils for high strenth.
5. Diameter 15/17mm, screw step 10mm, Length 6m.
6. High strength broken loading reach to 140kn.
7. OEM type and size.
Specification sheet：
Model
WRK-TR12
WRK-TR17
WRK-TR
Diameter
10/12mm
15/17mm
20/22mm
Unite Weight(G)
0.72KG/M
1.5KG/M
2.4KG/M
Material
Q235
Q235/G45
Q235/G45
Surface Treatment
Self color/Zinc
Self color/Zinc
Self color/Zinc
Packages
Bundles
Bundles
Bundles

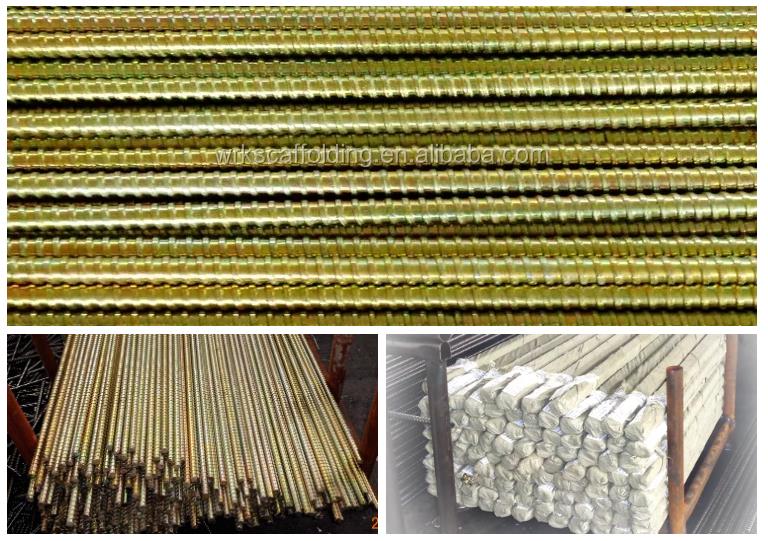

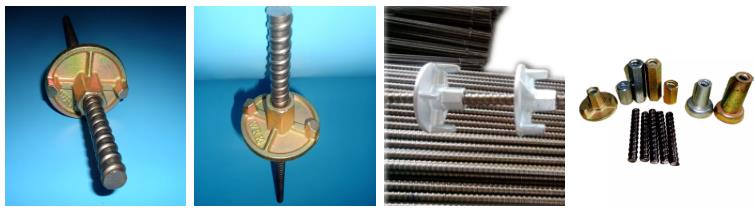

Detailed Images

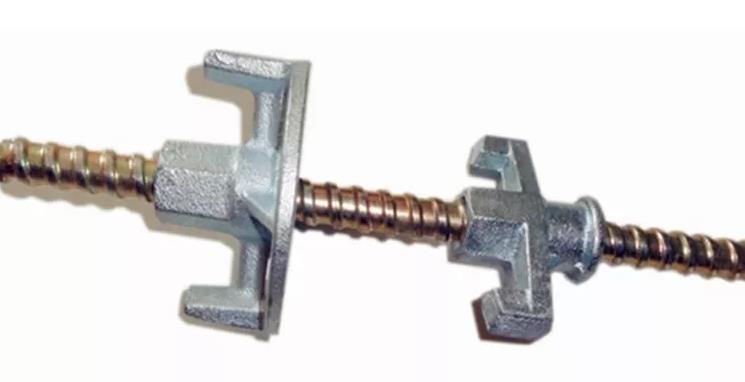

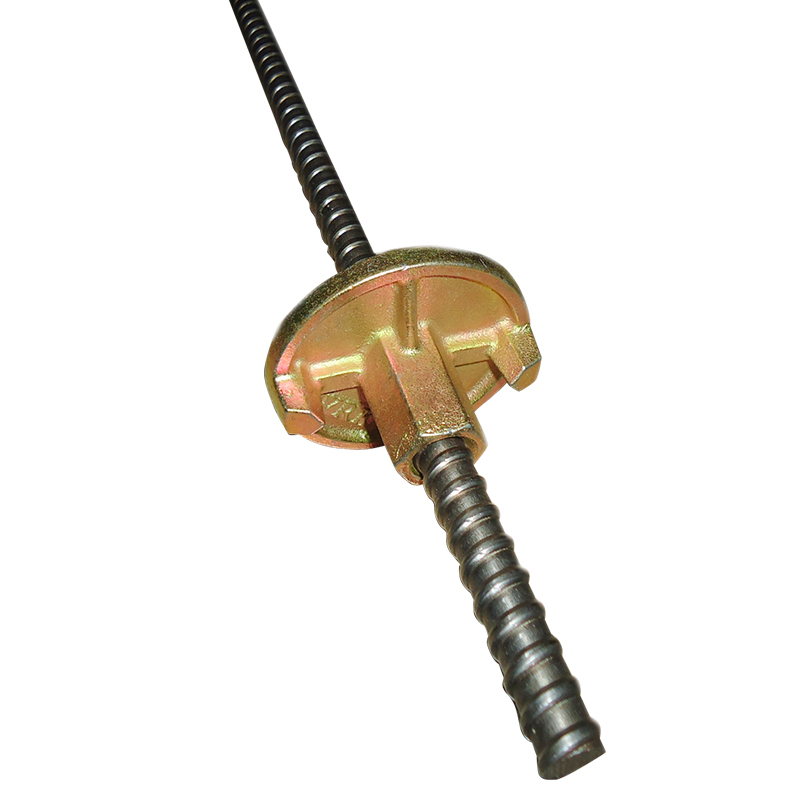

Formwork Tie Rod with Formwork Wing Nut
Tie rod 15/17mm Wing Nut Cast iron 0.30kg
Formwork system famous usage, we matches tie rod and wing nut very well, it is low cost way together with wing nut,
and very hot ways in china and other asian countries.
Formwork Tie Rod with Formwork 3 wings nut
Tie rod 15/17mm Tie Nut Cast iron
With round baseRound base tie nut, base diameter can be 70mm/80mm/90mm/100mm/110mm/130mm.
It is wasy way for formwork tie rod system.

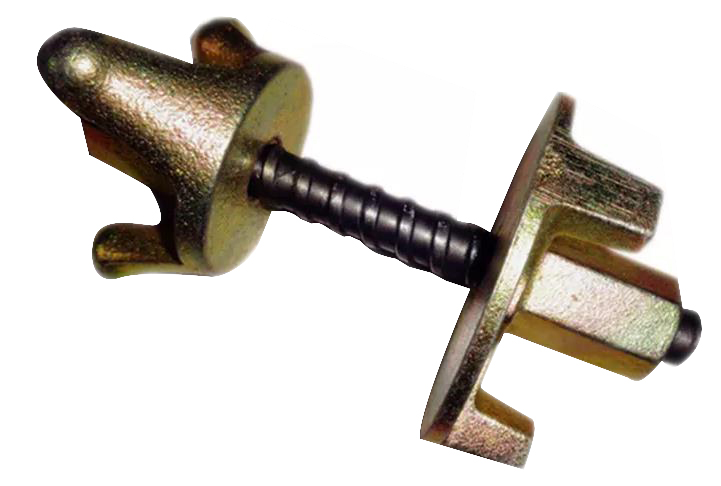

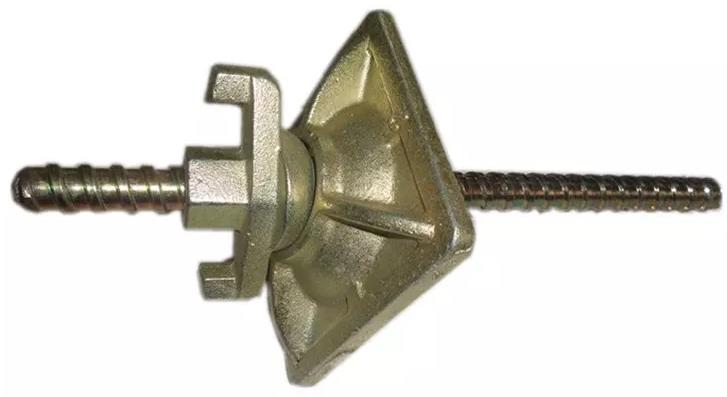

Formwork Tie Rod With Swivel Combin Nut
Tie rod 15/17mm Tie Nut Cast iron With swivel base
Round base t, base diameter can be 100mm/110mm/120mm.
It is wasy way for formwork tie rod system.

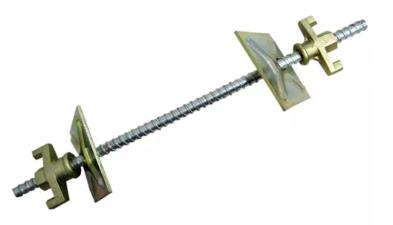

Formwork Tie Rod With carbon steel
Tie rod 15/17mm Wing Nut Cast iron
Waller plate: carbon steel
The most popularest ways for concrecteformwork system.

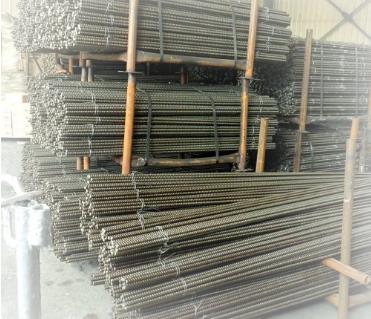

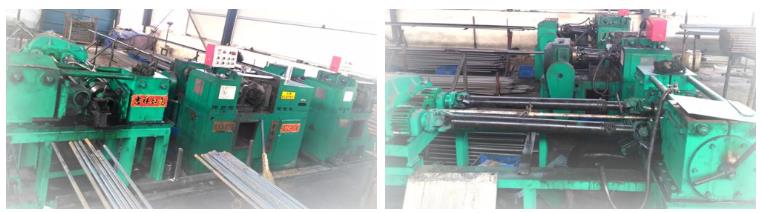

Production coner of formwork tie rod

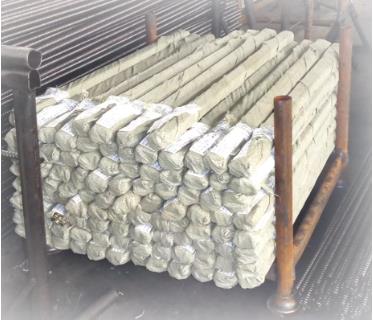

Packing & Delivery Packing Details Packing, wooden case, big woven bags, samll bags etc.
Delivery Details 3-30 days after order
Packaging Size 100mm*100mm*100mm Weight 1.2 T Packaging Details The normal package is STEEL PALLET (Size: L*W*H). If export to european countries,We will use wooden box .If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging Size 3000 (L) * 1000(W) * 800 (D) Weight 3.0 T Packaging Details The normal package is STEEL PALLET (Size: L*W*H). If export to european countries,We will use wooden box .If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Company WRK-WORLD CUP We are a finest manufacturer and supplier of scaffolding & formwork with accessories, Construction equipments, Metal Products, and building container house etc.
WRK family factories mainly produce ringlock scaffolding, steel props, jack base, Tie Rod,Rapid Clamps, BFD clamps, types of metal parts, folding container house for building companies.
We cooperated with worldwide business partners, USA, Canada, Europe Union, Brazil, Australia, Africa, Middle-East, and Southeast Asia. We try our best to supply quickly and reliably products and service to the worldwide clients
We are local scaffoldings group, wide range products as following
Ringlock scaffolding
Casting steel ledger head, brace head, rosette etc.
—————————————————————————————————————————————————————
Cuplock scaffolding
Casting iron top cup, pressed bottom cup, also blade etc.
—————————————————————————————————————————————————————
Scaffolding parts
Jack base, U head, fork head jack, props,prop nuts, prop pins,sleeves,scaffolding joint pins,frame pins etc.
—————————————————————————————————————————————————————
Formwork tie rod system
Tie rod, wing nut, anchor nut,cone,hex,waller plate,combin anchor,rapid clamps,wedge locks,wedges,formwork coners etc.
—————————————————————————————————————————————————————
Scaffolding coouplers
Forged coupler, pressed couplers,casting couplers etc.
—————————————————————————————————————————————————————
Exhibition and Team
Our Certifications
We are factory，Our company expert in scaffolding coupler and formwork accessories for 23 years，Best supplier for scaffolding formwork items.
1.Perfect technical design and production controlling.
2.Fast production terms.
3.Factory price for high quality.
4.OEM service is available.
 | Our Service |
Designing: We supply research designe advise.
Sampling: We supply material testing,cerfitified & Sassured.
Producting: We use ISO 9001:2008 QMS.Machining&process
Quality controlling: Material, Preproduction samples,Inprocess standard, Preshipping.
After sales: Modify future orders,Alternative products etc.
| FAQ |
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
