U Head Jack base scaffolding Screw Jack used scaffolding for sale

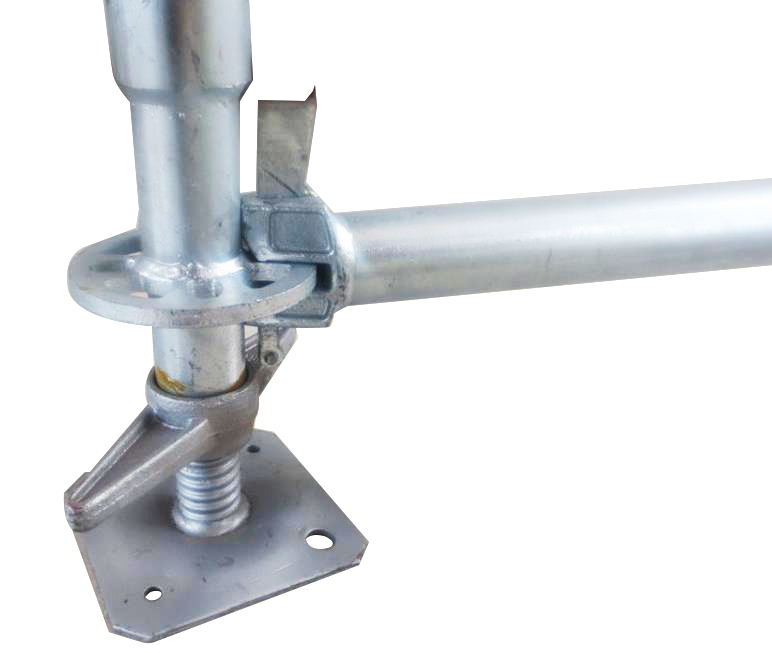

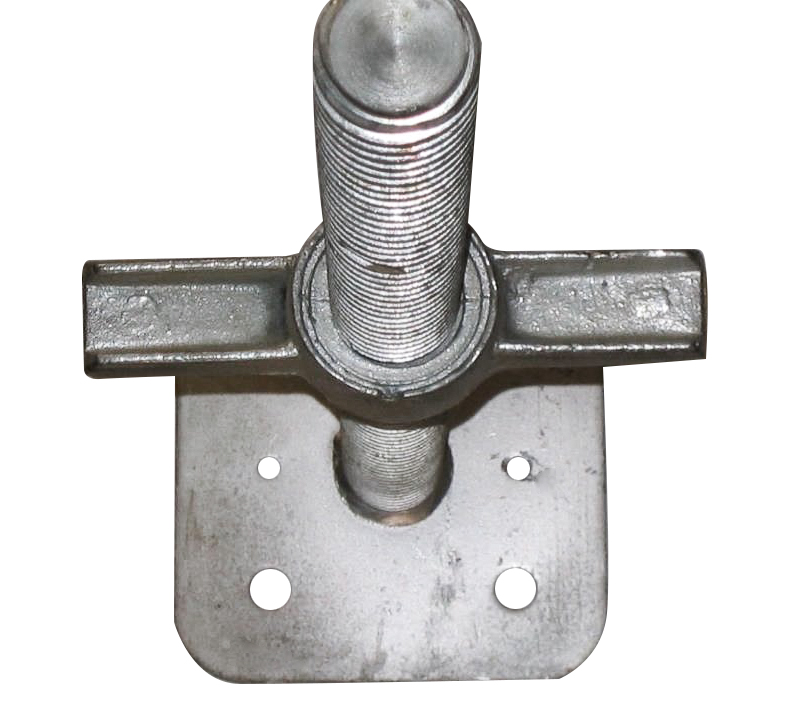

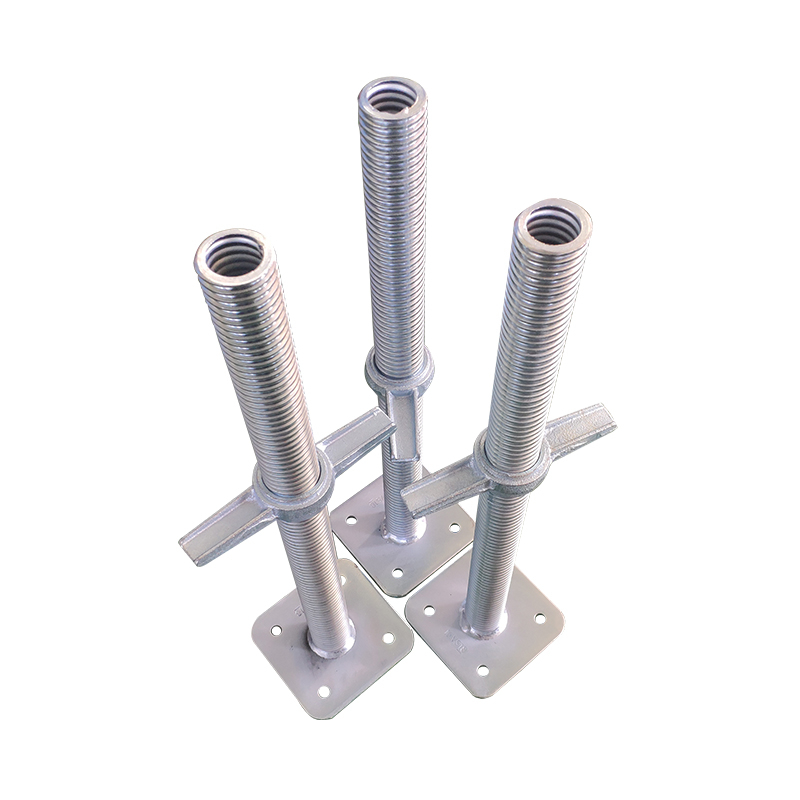

Jack base used as the base of the scaffolding system,to adjust the rough ground into the same level,and stablized the system.
Jack base can able to made a stablity to the structure with adjustment to the base.
Jack Base is used with all scaffold systems and some formwork systems.
It is the accessory used to safely adjust the scaffold legs. This may be necessary when different working heights are encountered or when the scaffold is mounted on sloped surfaces.
Product name: U Head Jack base scaffolding Screw Jack used scaffolding for sale
product name U Head Jack base scaffolding Screw Jack used scaffolding for sale
material Q345 for welded pipe and 45# for seamless pipe rigid base plate 6mm*150mm*150mm,6mm*140mm*140mm standard ISO9001-2000,SGS,BV surface treatment electric galvanized,sliver color dimension max 500mm,min 40mm weight 7kg overoll height 700mm adjustment range 225mm from550mm tube size 38mmx4.5mm
Basic information:
Jack Base is used with all scaffold systems and some formwork systems.
It is the accessory used to safely adjust the scaffold legs. This may be necessary when different working heights are encountered or when the scaffold is mounted on sloped surfaces.
Specification sheet:
Model
WRK-JB600
WRK-JB750
WRK-JB900
Diameter
34/38mm
34/38/42mm
38/42mm
Unite Weight(G)
4.5kg
4.8kg
5.5kg
Material
Q235/G20
Q235/G20
Q235/G20
Surface Treatment
Zinc
Zinc
Zinc
Packages
Pallet
Pallet
Pallet
SCAFFOLDING JACK BASE Item No. Diameter Length Plate Weight Surface WRK/BJ/001 30MM(Solid) 400MM 120x120x4MM 2.61KG Black/Painted/E.G./H.D.G. WRK/BJ/002 30MM(Solid) 600MM 120x120x4MM 3.58KG Black/Painted/E.G./H.D.G. WRK/BJ/003 32MM(Solid) 400MM 120x120x4MM 2.90KG Black/Painted/E.G./H.D.G. WRK/BJ/004 32MM(Solid) 600MM 120x120x4MM 4.01KG Black/Painted/E.G./H.D.G. WRK/BJ/005 34MM(Solid) 400MM 140x140x4MM 3.41KG Black/Painted/E.G./H.D.G. WRK/BJ/006 34MM(Solid) 600MM 140x140x4MM 4.67KG Black/Painted/E.G./H.D.G. WRK/BJ/007 38MM(Solid) 600MM 150x150x5MM 3.39KG Black/Painted/E.G./H.D.G. WRK/BJ/008 38MM(Solid) 600MM 160x160x5MM 4.33KG Black/Painted/E.G./H.D.G.
Features:

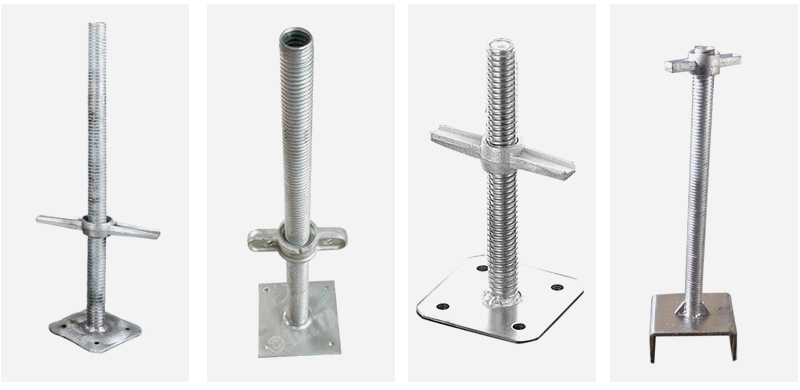

1. Solid screw and Hollow screw both provide.
2. Diameters from 28mm to 48mm are available.
3. Surface treatment electric galvanized or hot dip galvanized.
4. Clients drawing type is ok.
Packing & Delivery Packing Details Packing, wooden case, big woven bags, samll bags etc.
Delivery Details 3-30 days after order
Packaging Size 100mm*100mm*100mm Weight 1.2 T Packaging Details The normal package is wooden box(Size: L100*W100*H100mm).,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging Size 110mm*110mm*110mm Weight 1.2 T Packaging Details The normal package is wooden box(Size: L110*W110*H110). It is cheap cost than wooden case.
Our Company WRK-WORLD CUP We are a finest manufacturer and supplier of scaffolding & formwork with accessories, Construction equipments, Metal Products, and building container house etc.
WRK family factories mainly produce ringlock scaffolding, steel props, jack base, Tie Rod,Rapid Clamps, BFD clamps, types of metal parts, folding container house for building companies.
We cooperated with worldwide business partners, USA, Canada, Europe Union, Brazil, Australia, Africa, Middle-East, and Southeast Asia. We try our best to supply quickly and reliably products and service to the worldwide clients
We are local scaffoldings group, wide range products as following
Ringlock scaffolding
Casting steel ledger head, brace head, rosette etc.
—————————————————————————————————————————————————————
Cuplock scaffolding
Casting iron top cup, pressed bottom cup, also blade etc.
—————————————————————————————————————————————————————
Scaffolding parts
Jack base, U head, fork head jack, props,prop nuts, prop pins,sleeves,scaffolding joint pins,frame pins etc.
—————————————————————————————————————————————————————
Formwork tie rod system
Tie rod, wing nut, anchor nut,cone,hex,waller plate,combin anchor,rapid clamps,wedge locks,wedges,formwork coners etc.
—————————————————————————————————————————————————————
Scaffolding coouplers
Forged coupler, pressed couplers,casting couplers etc.
—————————————————————————————————————————————————————
